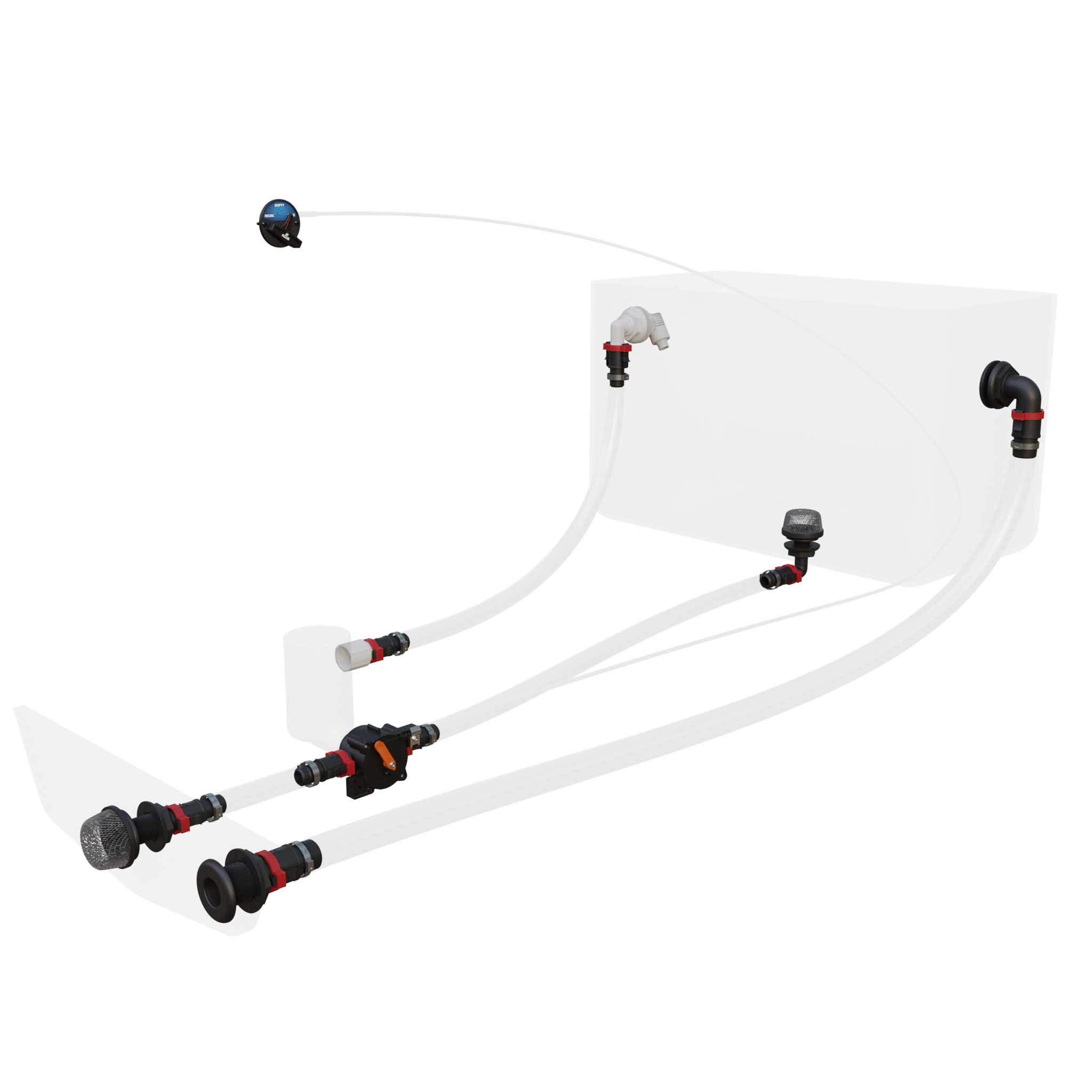

This kit features a System 3 valve and actuator with RECIRC, EMPTY and AUTO functions, accompanied by a PowerStream Nozzle Aerator, 1-18″ Overflow fittings, and a set of Qwik-Lok connectors. Please note that the cable is available in various length and is not included in the kit. Ensure that you select the appropriate cable length based on your specific boat and actuator mounting position. Additionally, this kit necessitates a pump (not included), which attaches directly to the valve. The kit excludes ¾” or 1-1/8″ hose as the length requirements differ from one boat to another. For a comprehensive installation, please consult the links below to access all the additional items required.
This kit includes:
- MA-011-QLB ¾” QL Straight Thru-Hull
- MA-014 ¾” QL Socket
- MA-018 ¾” Snap-in Strainer
- MA-021 Adapter ¾” QL x ¾” Female
- MA-023 Screw-on Strainer
- MA-037 Adapter Rule to QL
- MA-040 1-1/8” QL Socket
- MA-041-QLB 1-1/8” Straight Thru-hull
- MA-042-QLB 1-1/8” Elbow Thru-Hull
- MA-074-QLB Drain Fitting, QL Elbow
- MC-1-03-100 Actuator, System 3
- MD-00315 ¾” Clamp
- MD-00316 1-1/8” Clamp
- MH-PSN-200 PowerStream Nozzle
- MV-13-FN01 Valve, Sys 3F, orange arm
OR
MV-13-RN01 Valve, Sys 3R, green arm
Other parts you may need:
MD-H06 – 3/4″ marine hose – sold per foot. Per customer measurements.
MD-H09 – 1-1/8″ marine hose – sold per foot. Per customer measurements.
MD-00168 – Rule pump
MA-CBL-XX – cable – Per customer measurement. 6-17 foot cables available in 1 foot increments.
